HVAC Troubleshooting Guide

Not every HVAC system malfunction requires an emergency service call or on-site technical support. In reality, the vast majority of perceived system failures stem from minor, easily resolvable issues that can be identified and fixed within minutes — either by your on-site project team or directly by the end customer.

Mastering basic, targeted HVAC troubleshooting brings tangible operational and business benefits:

• ✔ Cut down on unnecessary after-sales service costs
• ✔ Eliminate unplanned system downtime
• ✔ Boost overall customer satisfaction and trust
• ✔ Keep commercial HVAC projects on schedule

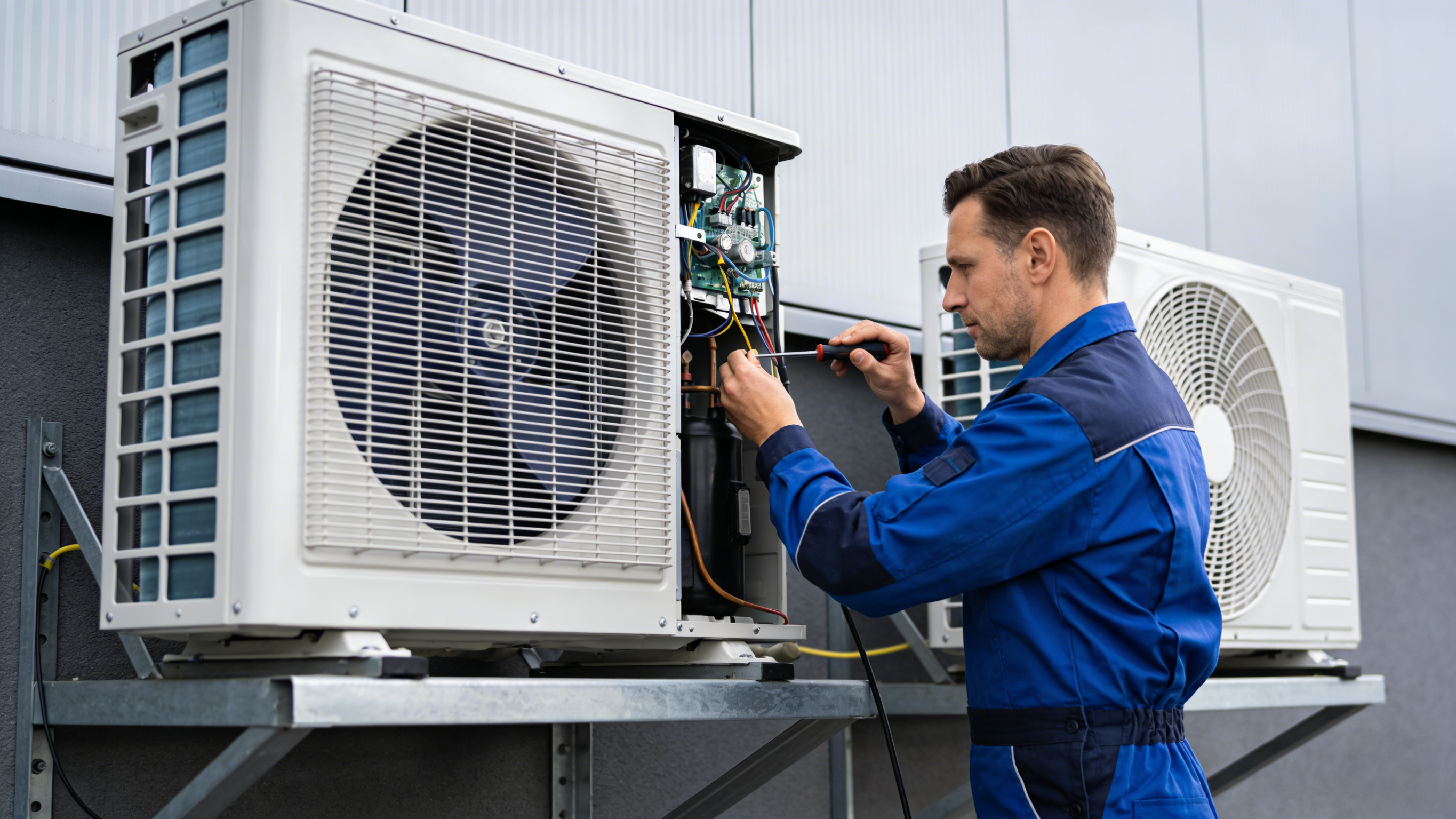

Before escalating issues to a professional technician or initiating warranty claims, walk through these standardized, easy-to-follow self-check procedures to resolve common faults quickly.

1. System Fails to Turn On

This is one of the most frequently reported — and frequently misdiagnosed — commercial and residential HVAC issues. Most root causes relate to power supply or basic control settings, not internal component failure.

Quick Diagnostic Checks

• Verify the main power supply is properly connected and the unit is receiving stable voltage
• Check if the circuit breaker has tripped or if the safety switch has been triggered; reset if needed
• Confirm thermostat settings are correct: verify operating mode (cool/heat/auto) and set temperature matches operational requirements
• Inspect external wiring connections for looseness, damage, or poor contact

2. Insufficient Cooling or Heating Output

End users often misinterpret weak temperature control as a unit capacity issue, but this is rarely the case. Most performance shortfalls stem from blocked airflow or routine maintenance oversights.

Quick Diagnostic Checks

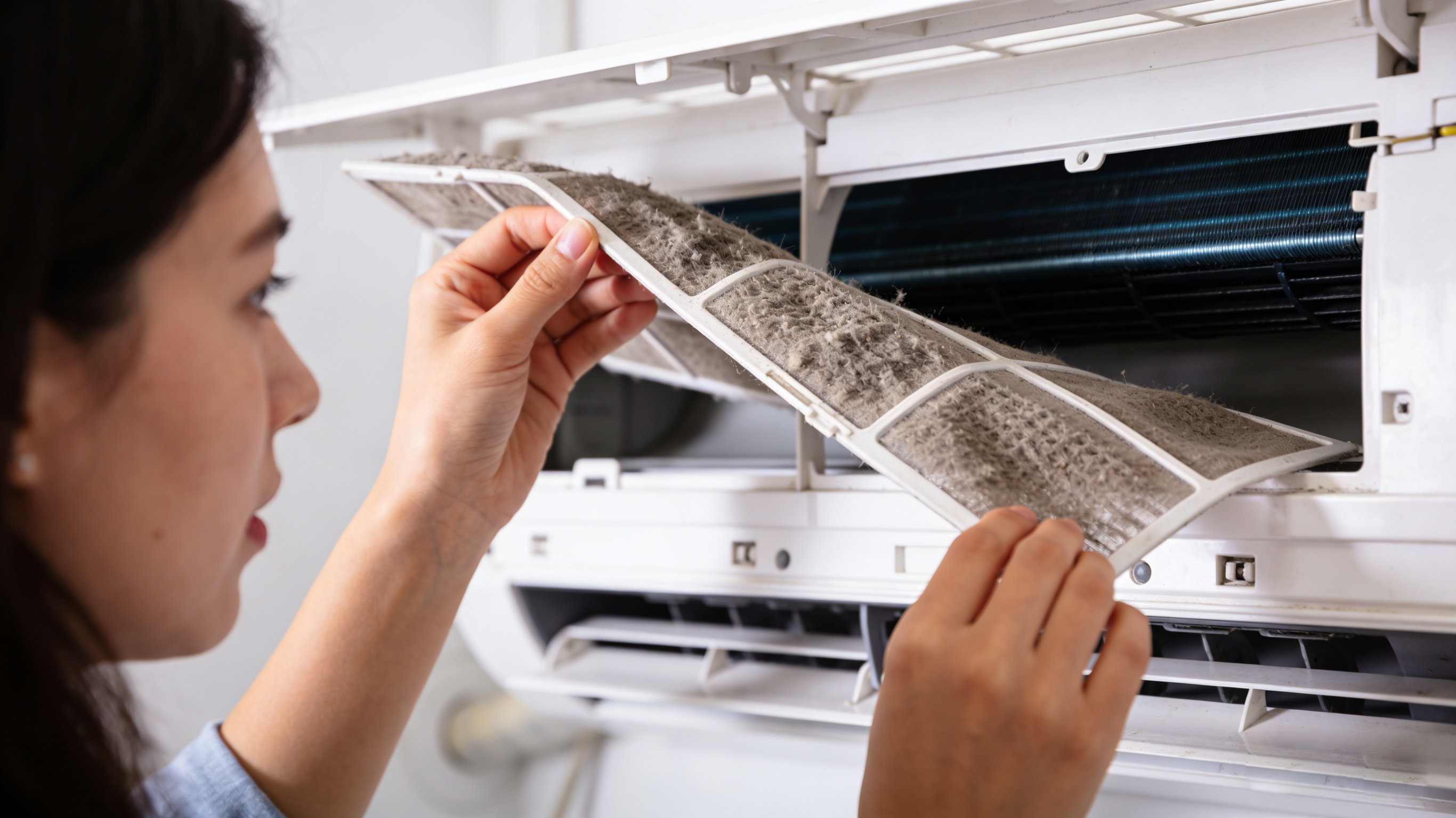

• Check and replace clogged, dirty air filters — blocked filters can reduce system efficiency by up to 30% and severely restrict airflow
• Clear all obstructions blocking supply/exhaust vents from both indoor and outdoor units
• Ensure all doors and windows in the conditioned space are closed during system operation
• Confirm the HVAC unit capacity is properly matched to the square footage and load requirements of the space

3. Outdoor Condenser Unit Fails to Run

When the outdoor unit shuts down, the entire HVAC system loses heating or cooling functionality. This issue often triggers safety shutdowns, not permanent component damage.

Quick Diagnostic Checks

• Confirm the outdoor condenser unit is connected to a stable power supply

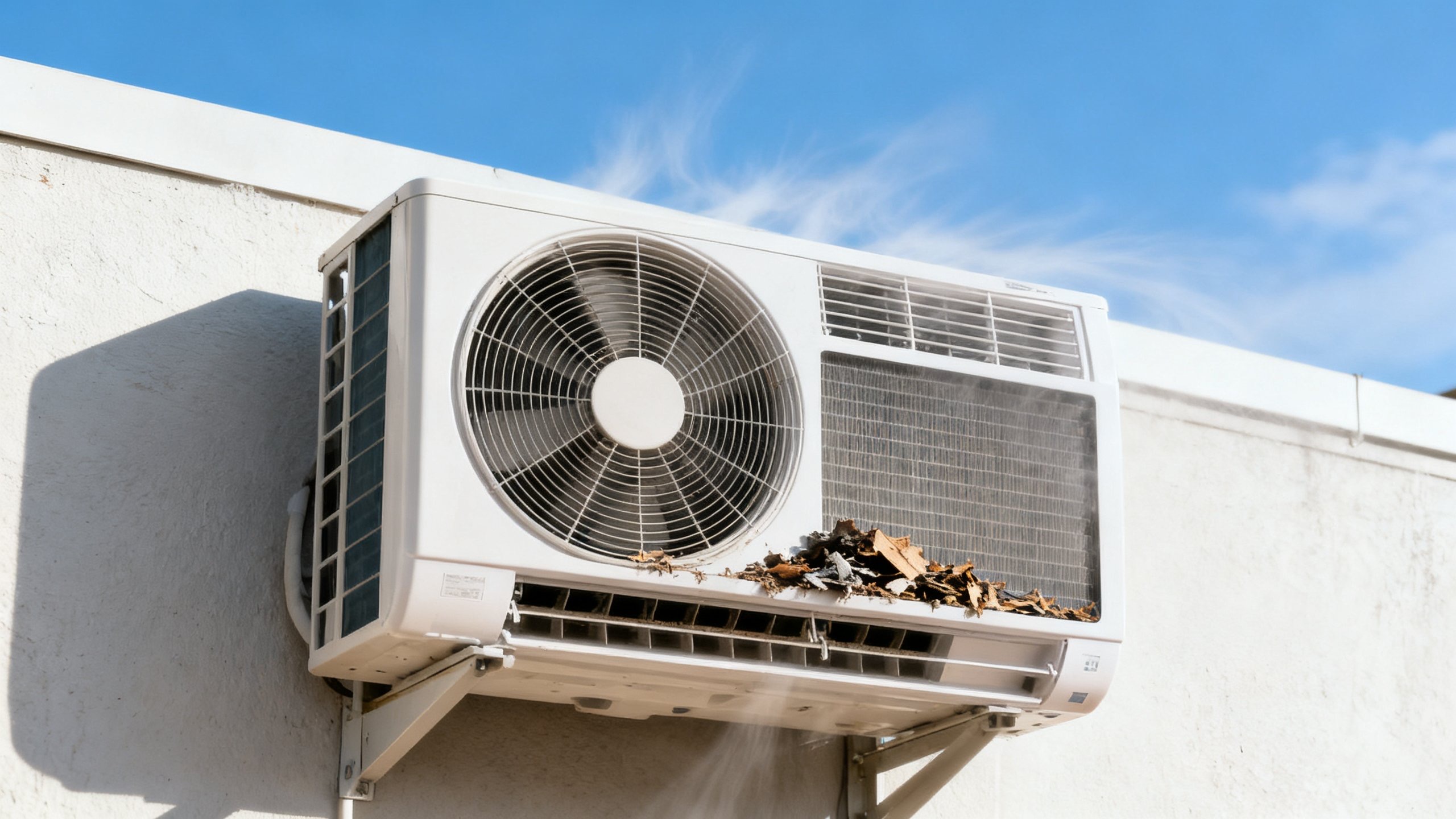

• Remove visible debris, dust, and foreign objects blocking the condenser fan and coil
• Check for overheating caused by poor ventilation; maintain clear spacing around the outdoor unit
• Verify if the system has activated automatic safety protection mode (common for overvoltage, overheating, or pressure faults)

Key Note: Modern commercial HVAC systems include built-in safety protocols that shut down operations to protect internal components from permanent damage.

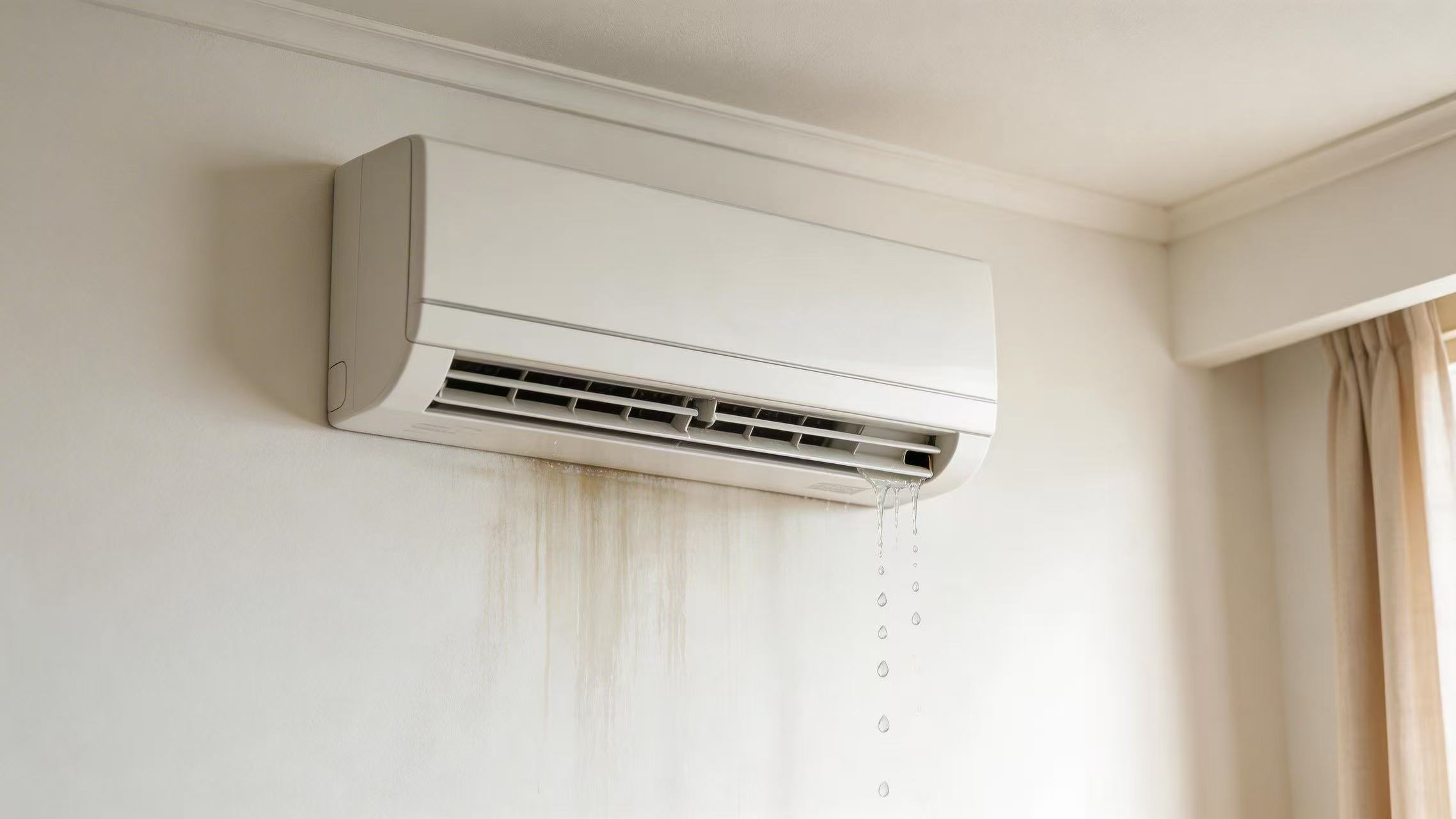

4. System Water Leakage

Water leakage is a prevalent issue, especially in high-humidity climates and enclosed commercial spaces. Most leaks are tied to drainage or installation flaws, not manufacturing defects.

Quick Diagnostic Checks

• Inspect the condensate drain pipe for blockages, bending, or improper routing; clear clogs to restore drainage
• Verify the indoor unit is installed at the proper slope for unobstructed condensate flow
• Check for excessive indoor humidity causing unmanageable condensation overflow
• Inspect the condensate pump (if equipped) for proper operation

Key Note: Improper field installation is the leading cause of HVAC water leakage issues.

5. Unusual Noise or Excessive Vibration

Unusual sounds and vibration do not always indicate catastrophic component failure, but these warning signs should never be overlooked. Early detection prevents minor issues from escalating into costly repairs.

Quick Diagnostic Checks

• Tighten loose mounting brackets, fixing screws, and installation hardware
• Confirm the unit is placed on a flat, stable, load-bearing surface to reduce vibration
• Check for loose internal fan blades, panels, or external covers
• Remove dust buildup and foreign objects contacting the internal fan

6. Frequent System Short Cycling

Short cycling — rapid, repeated on/off operation — shortens system service life, drives up energy consumption, and reduces overall comfort. This issue is rarely tied to product defects.

Quick Diagnostic Checks

• Verify thermostat placement: ensure it is away from direct sunlight, heat sources, and drafty areas
• Check if the system is oversized for the conditioned space, leading to frequent temperature cutoff
• Eliminate airflow restrictions from blocked vents, dirty coils, or clogged filters

Key Note: Short cycling typically stems from system design, sizing, or installation inconsistencies.

Comprehensive Support From Bestcold: Beyond Equipment Supply

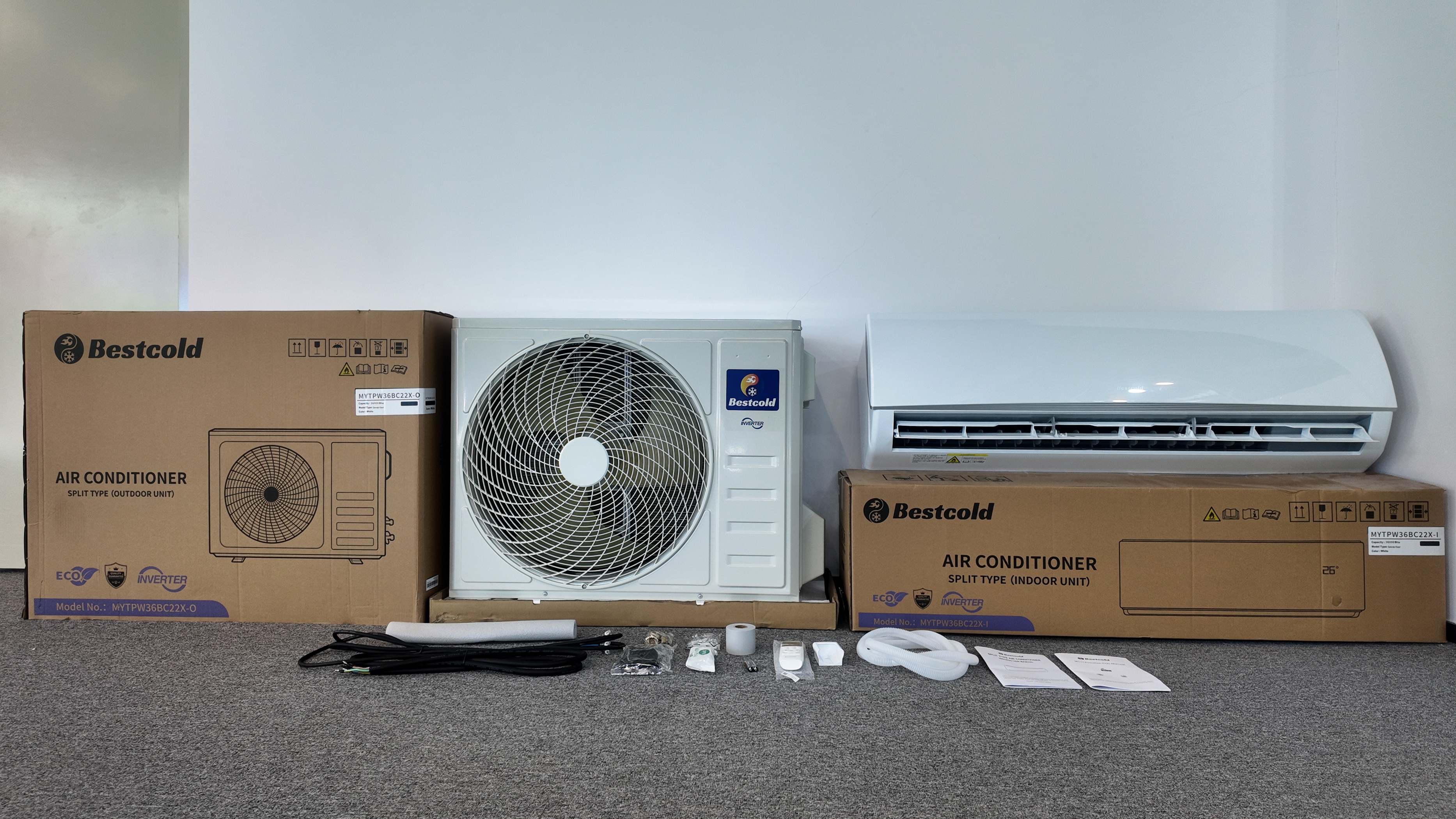

At Bestcold, we are more than a premium HVAC equipment supplier — we provide full-lifecycle operational support to keep your projects running smoothly and minimize disruptions.

Our dedicated client support includes:

• Pre-sales technical guidance and system sizing support
• Targeted troubleshooting assistance for common field issues
• Professional on-site installation guidance and best practices
• Full-range, in-stock spare parts availability
• Fast-response technical and after-sales service

We understand that your brand reputation hinges on system reliability, and your profitability depends on seamless project efficiency — we are here to support both.

Final Thoughts

Before concluding that an HVAC system has suffered a critical failure, always start with standardized basic checks. Minor, easily resolvable issues are often the source of hidden operational costs and project delays in commercial HVAC projects.

For routine malfunctions, self-diagnosis can resolve issues quickly; for complex technical faults, the Bestcold support team is ready to provide reliable, professional assistance at any time.
